CERTIFICATION / TRACEABILITY :
Calibration is done against Master Dead Weight Pressure Gauge Tester and Master Dial Pressure / Vacuum Gauges. Our instruments are backed by test certificates traceable to National Standard to meet the requirements of ISO 9000, QS 14000 and other Inspection Agencies.

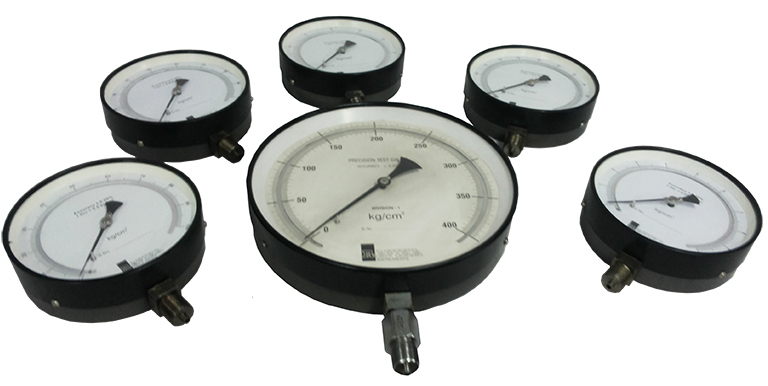

| DIAL SIZE |
: 150mm, 250mm |
| MOUNTING |
: Direct mounting type |
| CONNECTION |
: 1/2" BSP or 3/8" BSP bottom connection |
| BOURDON |
: Stainless Steel SS 304 / SS 316 |
| MOVEMENT |
: Stainless Steel SS 304 / SS 316 |
| SHANK |
: Stainless Steel SS 304 |
| JOINTS |
: Argon Arc welded |
| CASING |
: Aluminium cast |
| WINDOW |
: Acrylic |
| DIAL |
: Mirror - reflex, White painted with
black markings |
| POINTER |
: Micro-adjustment, knife-edge pointer |
| ACCURACY |
±0.25% of f.s. |
Unit of Calibration : kg/cm2 |
Unit of Calibration : kg/cm2 |
Dial size |
Range |
Least Count |
150 mm |
0-1 |
0.005 |
150 mm |
0-1.6 |
0.01 |
150 mm |
0-2.5 |
0.01 |
150 mm |
0-4 |
0.02 |
150 mm |
0-6 |
0.02 |
150 mm |
0-10 |
0.05 |
150 mm |
0-16 |
0.1 |
150 mm |
0-25 |
0.1 |
150 mm |
0-40 |
0.2 |
150 mm |
0-60 |
0.2 |
150 mm |
0-100 |
0.5 |
150 mm |
0-160 |
1 |
150 mm |
0-250 |
1 |
150 mm |
0-400 |
2 |
150 mm |
0-600 |
2 |
150 mm |
0-760
|
5
|
| |
Vacuum |
|
Dial size |
Range |
Least Count |
250 mm |
0-1 |
0.005 |
250 mm |
0-1.6 |
0.005 |
250 mm |
0-2.5 |
0.01 |
250 mm |
0-4 |
0.01 |
250 mm |
0-6 |
0.02 |
250 mm |
0-10 |
0.05 |
250 mm |
0-16 |
0.05 |
250 mm |
0-25 |
0.1 |
250 mm |
0-40 |
0.1 |
250 mm |
0-60 |
0.2 |
250 mm |
0-100 |
0.5 |
250 mm |
0-160 |
0.5 |
250 mm |
0-250 |
1 |
250 mm |
0-400 |
1 |
250 mm |
0-600 |
2 |
250 mm |
0-760 |
2 |
| |
|
|
|
